Orthalign VR

Basic demonstration of existing OrthalignVR functionality. Unrigged skeleton results in the unflexed knee. Screen recording is compressed.


STORYBOARD

Target runtime: 2 mins

Target delivery date: August 4th, 2016


  • Immersive introduction with Orthalign branding and introduction of KneeAlign system
    • Features open space (Matrix loading dock)
    • Narration and music
    • Logo displays, stats, one sentence
    • 2 jigs, nav unit appear (Figure 1)
    • “Use the triggers to interact with objects”
    • Display UI prompt on objects to touch, user touches one
    • “Very good, let’s begin”
    • Fade to black
  • Fade into operating environment
    • Room scale environment with table, knee prepared w/ incision
    • Tibial jig and femoral jib floating in UI menu with Nav Unit and sensor
    • “Select the tibial or femoral jig to begin” (Figure 2)
    • Animation w/ audio cue, narration “Ok let’s do the tibial jig”
  • Tibial demo
    • Jig floats down, pauses above the knee
    • Landmarks are highlighted, narration:
      • “ACL footprint”
      • “Medial 1/3rd of the tuberical”
    • Jig snaps in, calf strap wraps around leg, 2 pins fly into slots
    • Animate tibial offset and registration, live statistics, ALL narrated (Figure 3)
      • Midline probe slides forward to ACL footprint landmark (posterior)
      • Adjust malleolar probe to match midline probe number
    • Animate malleoli registration
      • Levers unlock
      • Ankle tube slides down, swings over to the 2 sides
      • Returns to original resting point
    • Setting cut angles (interactive)
      • “Now we’ll set cut angles”
      • Left-right movement interaction prompt (V/V# appears preset incorrectly)
      • “Adjust the V/V angle until you’re satisfied, then lock the angle with the V/V lever”
      • Dominant hand moves malleolar probe to within 5, other hands taps switch
      • Same for posterior slope (PS# appears preset wrong, same interaction/narration
    • Remaining technique is animated
      • Possibly bone cut is interactive
    • “Success narration with stat; Now, the femoral jib (the other jig)”
  • Femoral demo
    • Jig flies down to femur, pauses above leg
      • Landmarks are highlighted, narration:
      • “Trochlear sulcus” (knee center), then the pin towards hip center
    • Jig snaps in, 2 pins fly in and secure
    • Input offset on device, preset at 4, animated
      • On HUD Nav Unit, 4 clicks to get to 4
      • “Prepare for femoral maneuver”
    • Begin interactive portion, narrated
      • Show video of maneuver on adjacent plane
      • Show controller positions to target, require similar alignment
      • Hold triggers to move leg, leg moves 1:1
      • Stoplight, then execute on green
    • Interactive maneuver
      • 5 seconds to complete
      • Display “meters” horizontally and vertically for movement (Madden field goal analogue)
      • At the end, error if the entire leg breaks a plane, otherwise pass
      • Registered, animate the rest of the procedure
    • Setting cut angles, narrated
      • Screwdriver animated to make adjustments
      • Resection depth animated
      • Cutting block drops, bone cut
    • “Congrats you completed Orthalign VR”
    • Stats are back, neutral environment, take off the headset.

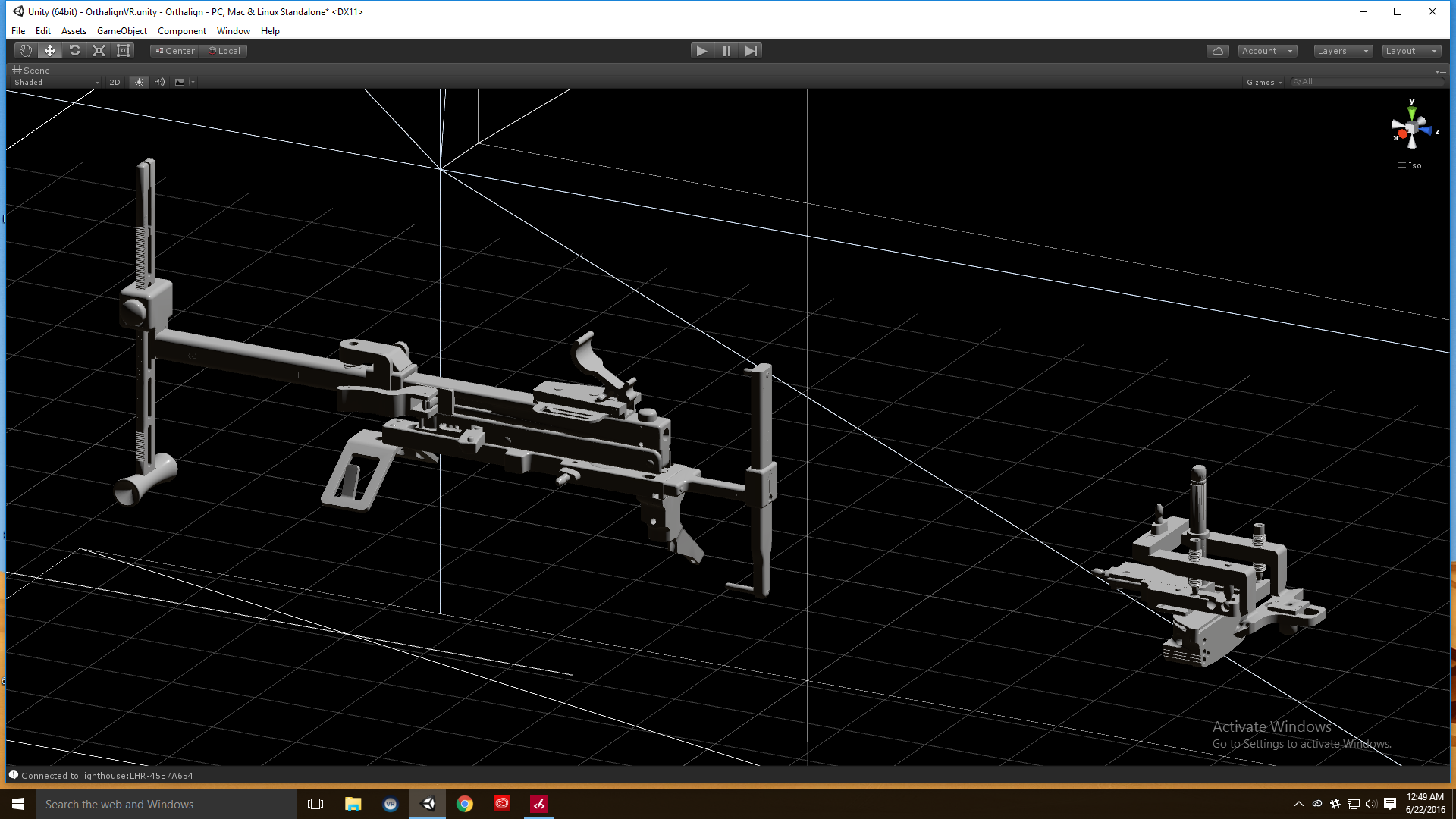

Figure 1. Two jigs appear in front of user, narrator introduces fundamental input: trigger - touch - interaction system.

Figure 1. Two jigs appear in front of user, narrator introduces fundamental input: trigger - touch - interaction system.



Figure 2. The jigs are available to touch and initiate tibial or femoral experiences. Upon touch they fly to the knee and the demo begins.


Figure 3. Animation depicts tibial offset and registration. Color is used to indicate accuracy in a stoplight schema: green is good, yellow is close, red is wrong etc.

Figure 3. Animation depicts tibial offset and registration. Color is used to indicate accuracy in a stoplight schema: green is good, yellow is close, red is wrong etc.


Notes:

balance between sizzle and training functionality?

Narrator will be very prominent, important to use quality voice

Safe and easy to use, anyone can try it as their first VR experience

WHAT IS THE GOAL FOR AUGUST 4 SURGEON DEMO?

How to balance intersection of speed, price, and quality.

Significant time has already been invested in VR Demo.
